Item |

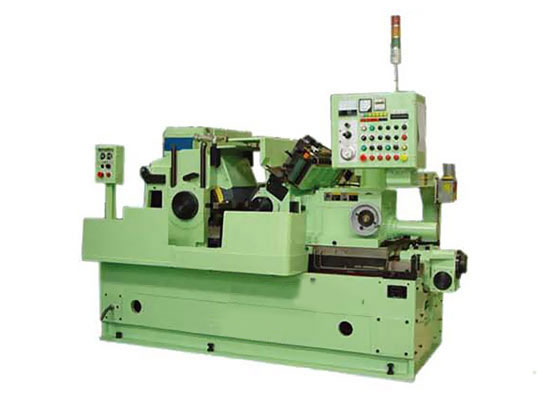

KC6030 |
|
Grinding Part Diameter（mm） |
φ2～φ20 |
|
Continuous Grinding（mm） |
Standard Bracket 350 |
|
Plunge Feed 300 |
|
Abrasion Wheel Size（mm） |
P610- 470X305X304.8 |
|
Guide Wheel Size（mm） |
P330×305×203.2 |
|
Abrasion Wheel Rotate Speed（r/min） |
1400 |
|
Guide Wheel Rotate Speed（r/min） |
12～230 AC frequency Conversion Infinitely Adjustable-Speed |
|
Guide Wheel Rotation Angel |
In Vertical Plane |
-5° ～ 5° |
|
In Horizontal Plane |
-2° ～ 2° |
|
Length from Abrasion Wheel and the centre of Grinding Wheel to the underside of Bracket（mm） |
235 |
|
Length from Abrasion Wheel and the centre of Grinding Wheel to the underside of Bed（mm） |
1050 |
|
Minimum feed of Abrasion Wheel Dresser（mm） |
0.001 |
|
Minimum Load（mm） |
0.001 |
| Abrasion Wheel Motor Power(kW) |
22 4P |
| Grinding Wheel Motor Power(kW) |
2.2 6P |
| Water Pump Motor Power(kW) |
0.4 2P |
| Magnetic Power Motor Power(kW) |
0.18 |
| Torque Capacity of Grinding Wheel Feed Servo Motor(N.m) |
10.9 |
| Torque Capacity of Abrasion Wheel Dresser Feed Servo Motor(N.m) |
5.2 |
| Torque Capacity of Grinding Wheel Dresser Feed Servo Motor(N.m) |
7.2 |
| Cooling Water Flux(L/min) |
|
| Machine Power Supply |
3N ～50Hz，380V |
| Machine Weight(t) |
8 |
| Machine Size （L×W） |
|
